FOAM MIXER TYPE

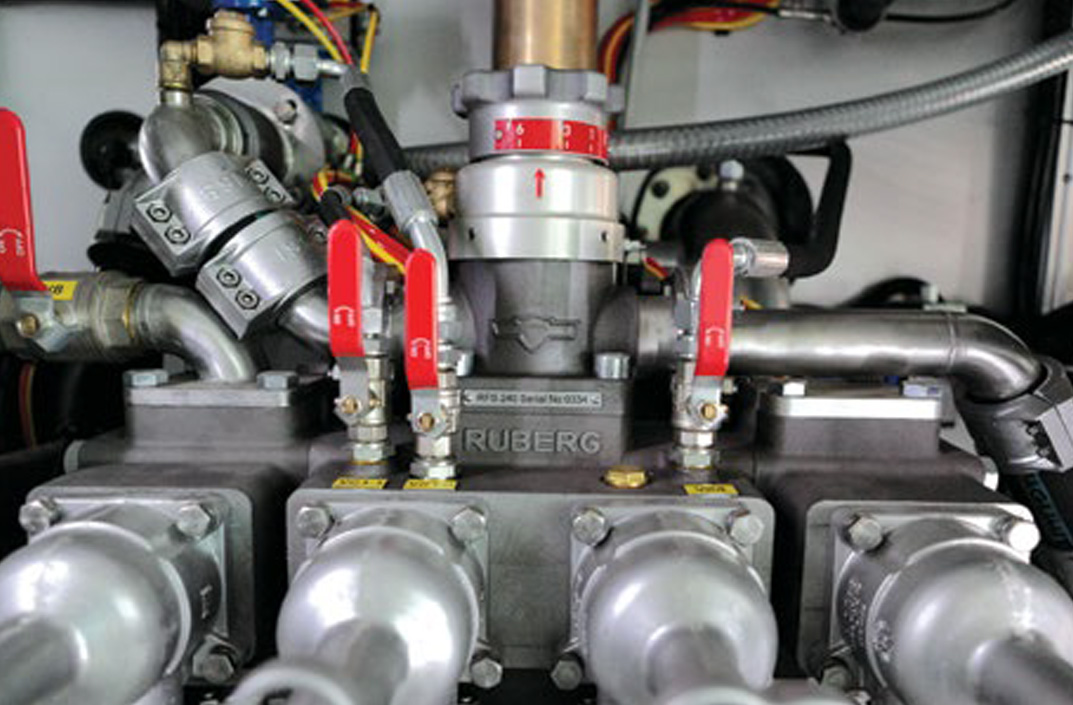

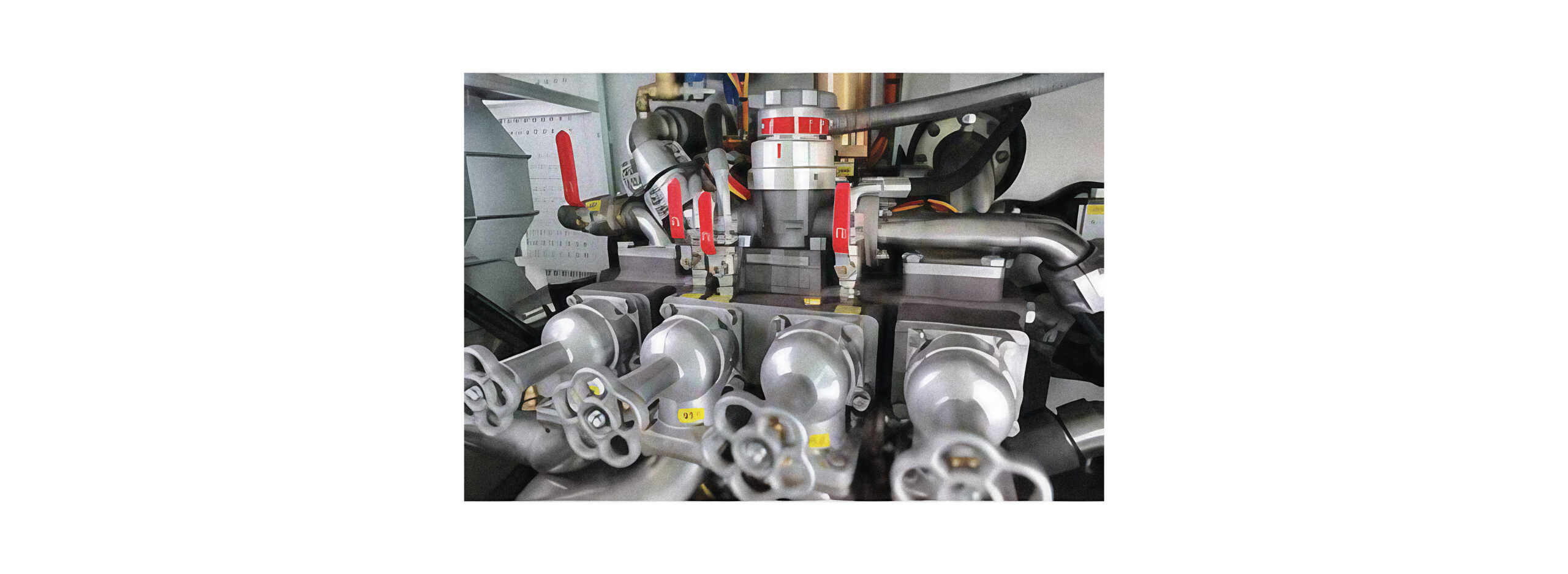

The RUBERG RFS 240 model is an automatic flow independent foam system. The system ensures precise foam concentrate dosing regardless of varying water flow conditions.

FOAM MIXING METHOD

The proportioner uses a round the pump system for efficient mixing of water with foam concentrate. The system ensures homogeneous mixing of components across the entire operating range.

MAXIMUM FOAM CONCENTRATE FLOW RATE

The maximum foam concentrate flow rate is 240 l/min. High capacity enables operation of large firefighting installations requiring intensive foam dosing.

DEVIATION OF THE MIXING

The system ensures dosing accuracy of +/-10% across the entire operating range. Precise dosing guarantees optimal extinguishing properties of the produced foam.

MAXIMUM WORKING PRESSURE

The maximum working pressure of the system is 16 bar. Robust construction enables operation in demanding high-pressure conditions typical for firefighting applications.

FOAM MIXING RATIO

The system offers three predefined mixing ratios: 1%, 3%, and 6%. Different concentration levels enable adaptation of foam properties to specific extinguishing requirements.
